Large room fluorine pump air conditioner

Features

Energy -saving

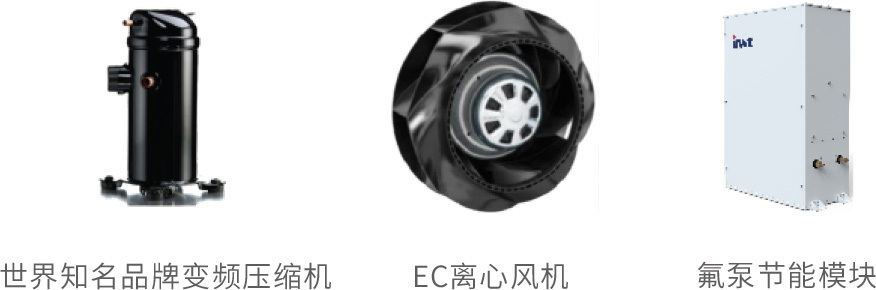

● DC inverter vortex compressor can dynamically adjust the output of cooling capacity in the range of 20%~ 100%, and refrigerate on demand;

● Reliable fully enclosed frequency fluoride pump with reliable effects, the power of the fluorine pump is not ⼤ 550W, extremely energy saving;

● Holding the fluorine pump module directly integrates into the V -type outdoor unit, saving the layout space and pipeline on site;

● Effective low noise and rear -noise EC , adjust the speed output according to the real -time heat load changes, and achieve the most limited energy saving;

● Electrodium expansion valve, faster response, more accurate flow adjustment, more energy -saving with the frequency conversion compressor;

● The inverter outdoor pupae, quickly adjust the speed output according to the system pressure changes to the system, and realize the energy efficiency of the energy;

● Taste -pyramid -effect internal threaded copper tube and plating -plated latch -based window -opening aluminum -winged rigid evaporator, the heat exchange efficiency is improved.

Safe and reliable

● Extraidal ingredients that have been strictly certified to improve reliability from the source;

● DC inverter technology, start the current to reduce the impact on the electricity;

● Under low load, accurately control the sending/recovery temperature and humidity;

● Intelligent monitoring power supply voltage, power frequency, and three -phase imbalances;

● The air conditioner is equipped with a oil separator, which is damaged by the lack of oil in the anti -cricket;

● Standard unidirectional valve, which is damaged due to the migration of refrigerant when the refrigerant is migrated during the stoppage;

● Standard the visual liquid lens, which can intuitively and effectively check the condition of the refrigerant in the air conditioning system pipeline;

● After rigorous and repeated test verification of the product, the standard requirements, ⾼ quality delivery;

● Two -stage evaporator design, adding a disk in the middle of the evaporator can effectively prevent the bleeding;

● Effective environmental protection refrigerant R410A, which meets the requirements of international green cricket environmental protection refrigerant;

● The air conditioner is used to return to the temperature design, and the step is improved to improve the cooling efficiency.

Intelligent control

● Advanced control system intelligently manages components such as compressors/expansion valves/compressors, and adjusts cooling and cooling output as needed;

● 7 inch full color capacitive touch screen with various display modes for graphic status and temperature and humidity curves;

● Adopting high-speed and flexible CAN communication protocol, capable of supporting group control management of no less than 64 units;

● Can connect no less than 10 temperature sensors externally, accurately sensing temperature field changes;

● Standard RS485 connection, optional SNMP connection;

● Multilevel password protection and hierarchical authorization management.

Flexible configuration

● Refrigeration density, with a cooling capacity ranging from 25-60kW, fully covered;

● Support on-site renovation and add fluorine pumps in the future;

● Maintain the pressurization mode to meet the demand for exceeding the height difference on site;

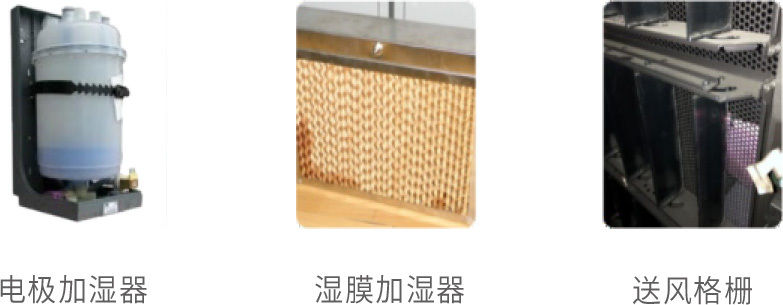

● Standard electrode humidifier and optional wet film humidifier;

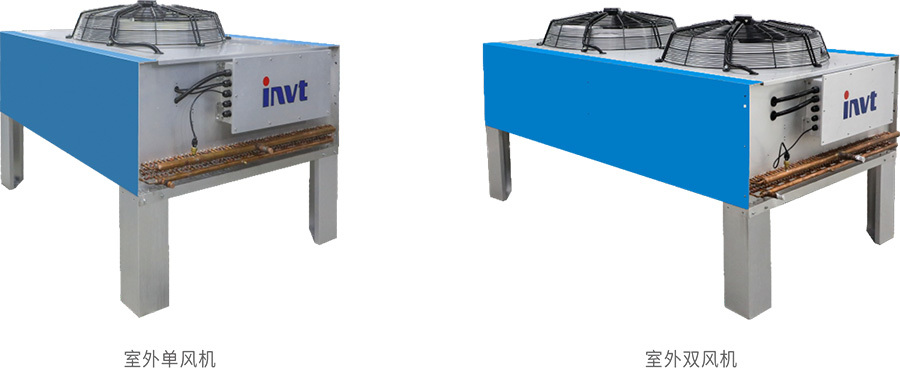

● Optional centralized outdoor unit, equipped with V-type heat exchanger, occupying a large area and exchanging heat;

● Equipped with optional upper tube/upper row pipes to meet the needs of different scenarios;

● Optional delivery grille, with a full capacity of about 100% for delivery;

● Optional dual power supply.

Intelligent switching of multiple modes

Fluorine pump energy-saving mode

When the outdoor environment temperature is low, it is necessary to turn on the fluorine pump natural cooling energy-saving system. At this time, turn off the compressor refrigeration system and turn on the fluorine pump natural cooling energy-saving system for refrigeration.

Compressor mode

When the outdoor environment temperature is relatively high, there is no condition to start the fluorine pump natural cooling energy-saving system. At this time, start the compressor and enter the conventional compressor for refrigeration.

Hybrid energy-saving mode

When the outdoor environment temperature is low but the refrigeration capacity of the fluorine pump cannot fully meet the full load of the machine room, the fluorine pump and compressor are operated simultaneously to explore the maximum efficiency of the compressor and achieve energy-saving operation.

Technical parameter table

Interior Model VCR Series	025	030	040	050	060
Circular air volume ㎡3/h	5000	5200	8500	10500	11500
Total Cold Volume (kW)	25.5	30.8	42.8	51.5	62.7
Related amount (kW)	25.5	30.8	42.8	51.5	62.7
Refrigerant type	R410A environmentally friendly refrigerant
Compressor type	Fully enclosed variable frequency compressor
Fluoride	Fully enclosed variable frequency centrifugal pump
Swell valve type	Electronic expansion valve
Number of fans (tai)	6	6	2	3	3
Fan Type	EC tilt back centrifugal fan
Air filter	G4 filter380V/3N~/50Hz
Power supply
Power distribution parameter FLA(A)	23.5(Single cold) 28.0(Constant temperature and humidity)	29.5(Single cold) 34.0(Constant temperature and humidity)	30.5(Single cold) 37.8(Constant temperature and humidity)	34.9(Single cold) 42.2(Constant temperature and humidity)	44.0(Single cold) 51.3(Constant temperature and humidity)
Heating(kW)	4.5	4.5	6.0	6.5	6.5
Moisturizing(kg/h)	3.0	3.0	3.0	3.0	3.0
Unit weight(kg)	220/230/245	230/240/255	300/310/325	330/340/355	335/345/360
Unit size specifications WXDXH(mm)	300*1100/1200/ 1400*2000	300*1100/1200/ 1400*2000	600*1100/1200/ 1400*2000	600*1100/1200/ 1400*2000	600*1100/1200/ 1400*2000
Dimensions of energy-saving modules for fluorine pumps WXDXH(mm)	600*300*900

Remarks:

1. Test conditions: Indoor ball temperature 37 ℃, relative humidity 24%.

2. The distribution parameters are the maximum operating current of the standard unit, including the cold outdoor unit current.

3. The air conditioning models listed in the color chart are all basic models. Please refer to the actual shipment for detailed models.

If you have any other customized requirements or technical parameters not listed in the table, please feel free to contact our company in a timely manner.

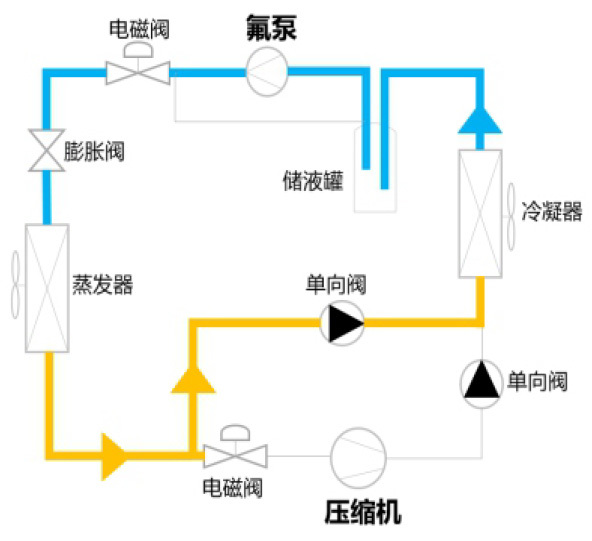

Operating principle

Shopping scene

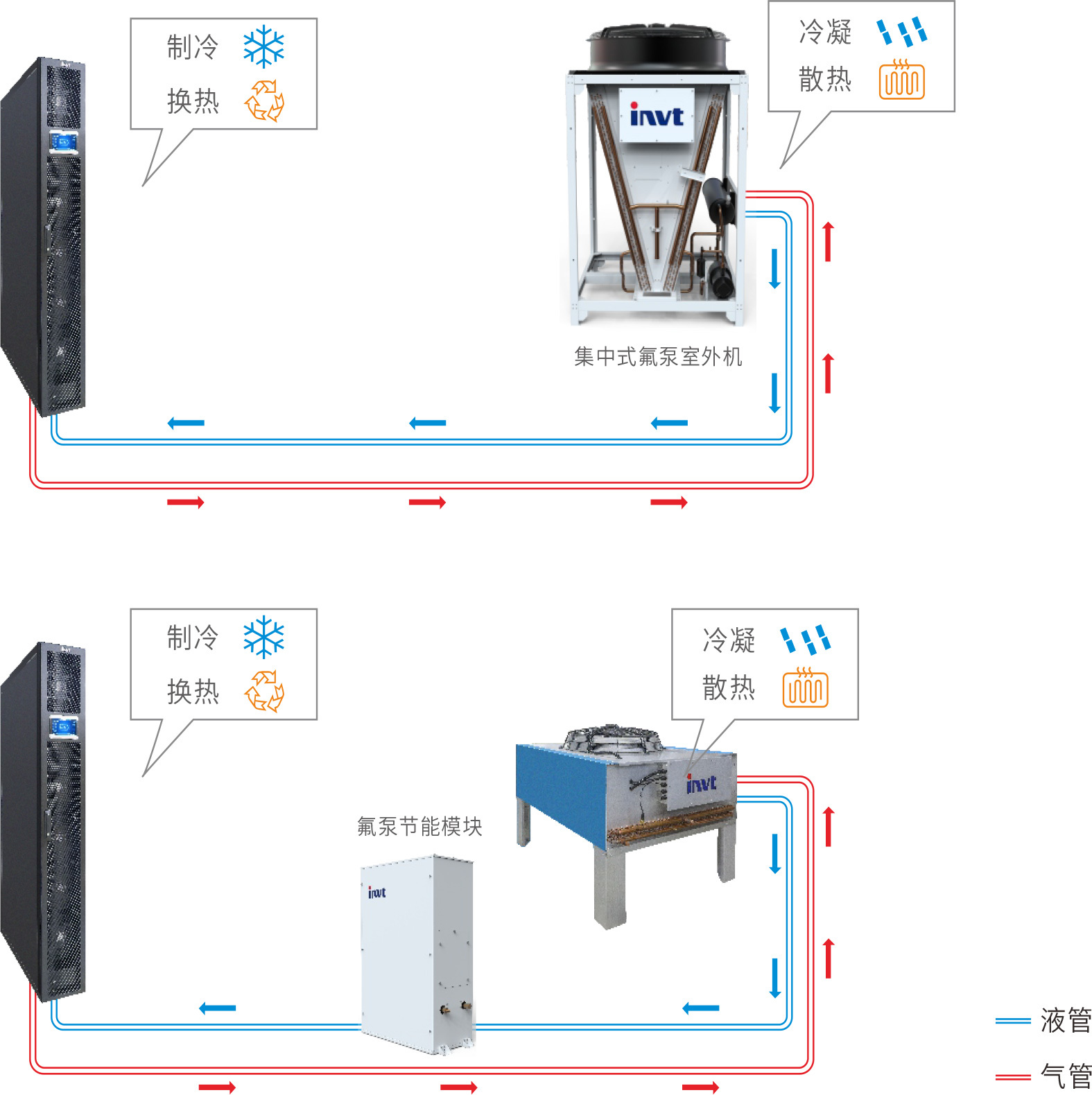

Note: The layout can be adjusted according to the equipment layout.

Technical parameters of supporting outdoor unit

Model	Number of fan (PCS)	Weight(kg)	Size(mm)
			L	W	H
VCP038SF	1	136	1378	982	740
VCP045SF	1	138	1578	1275	750
VCP056SF	1	152	1778	1275	750
VCP076SF	2	178	2178	1275	740
VCP088SF	2	188	2378	1275	750

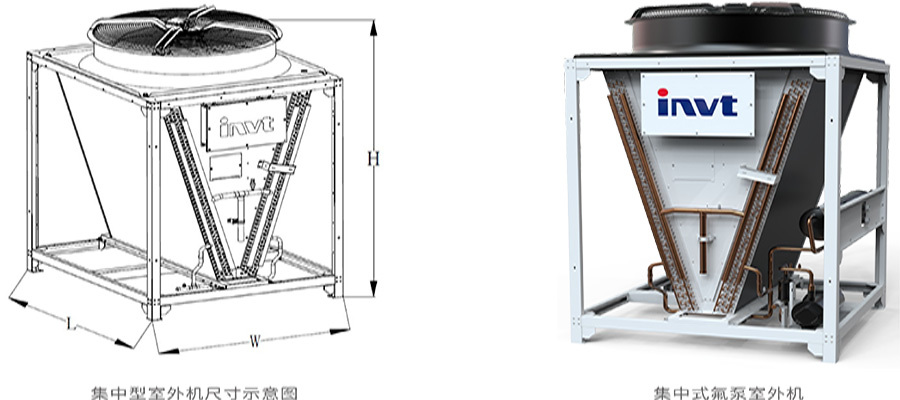

Outdoor unit size design intention

Concentrated fluorine pump outdoor aircraft parameters

Model	Number of fan	Weight	Size
Unit	PCS	kg)	Lx WxH(mm)
VCP045SV	1	140	1100x1100x1685
VCP056SV	1	152	1100x1100x1685
VCP066SV	1	168	1100x1100x1775
VCP076SV	1	178	1100x1100x1775
VCP088SV	1	188	1300x1100x1775
VCP096SV	1	198	1300x1100x1775
