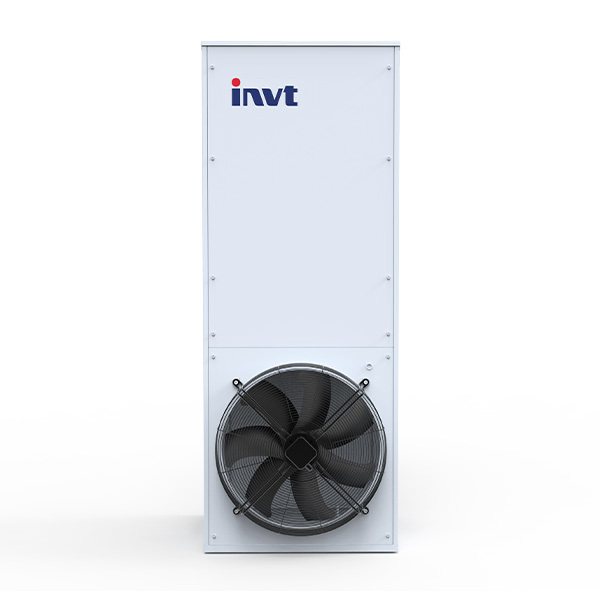

Energy storage air conditioner

Overall product introduction

With the rapid development of the energy storage industry, the demand for the temperature control products required for energy storage system equipment is increasingly urgent. 3-5KW-cold fixed-frequency integrated energy storage special air conditioner is a professional temperature control product designed for electrochemical energy storage applications. It is widely used in communication, outdoor power energy storage, industrial automated electrical control cabinets, and power prefabricated compartment storage. In the power system.

3-5KW-cold-cooling-frequency integrated energy storage special air conditioner is an outdoor energy storage cabinet temperature control product developed on the basis of 7.5kW-20.5KW energy storage container temperature control products. Refrigeration levels are divided into 3KW, 4KW, 5KW, and 7.5kW. The installation method is wall -mounted and outdoor appearance. The product of this project has the characteristics of installation convenience, accurate temperature control and wetness, high reliability, etc., and can cope with harsh environments such as outdoor high temperature. The use of air -cooled refrigeration methods to expand the competitiveness of our company's energy storage temperature control products in the air -cooled energy storage temperature control products.

Energy storage air conditioner	Energy storage air conditioner

Product application scenarios

Energy storage containers, communication base stations equipment warehouses, power prefabricated cabinets, outdoor power intelligent control cabinets, highway automatic card issuers, industrial automated electrical control cabinets and IDC prefabricated warehouses and other application scenarios.

Product technical characteristics

● Over large air volume, stepless speed adjustment of the fan, reduce power consumption, efficient energy saving

● Spray outdoors to improve the corrosion resistance of the product and deal with the harsh outdoor environment

● Closed refrigeration inner and outer circulation design, IPX5 high waterproof level, 100%full test test

● Normal cooling operation in high temperature environment at 55 ℃, with outstanding high temperature performance

● 2.5 -inch key text screen, you can meet the viewing and setting of various parameters in full text display

● The fault content text shows that there is no need to check the fault code, convenient maintenance

● Call self -enabled, has fault self -diagnosis and early warning function

● Provide open protocols, support more accurate temperature control according to the temperature cell temperature

● One -in -one design, no need for pipe welding, easy installation

● Support external alarm inputs such as access control and water soaking

● Support emergency ventilation fan/hydrogen discharge fan control function
